Network /LAN Cable CAT6 UTP

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717

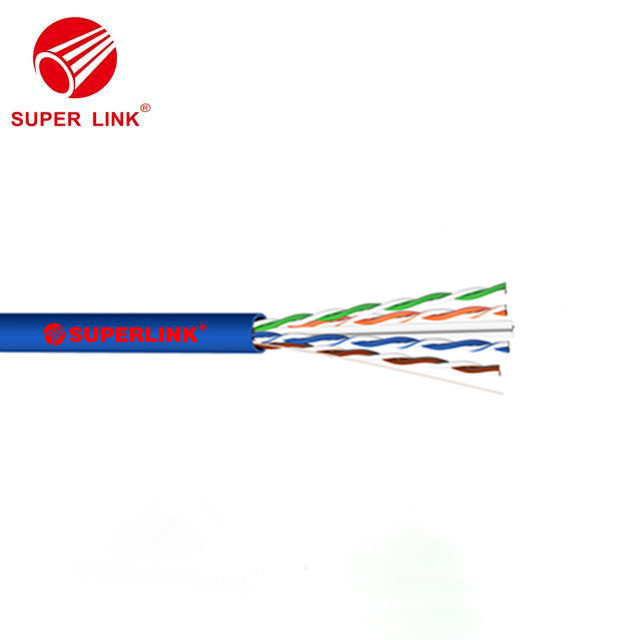

CAT6 UTP LAN CABLE



Specifications

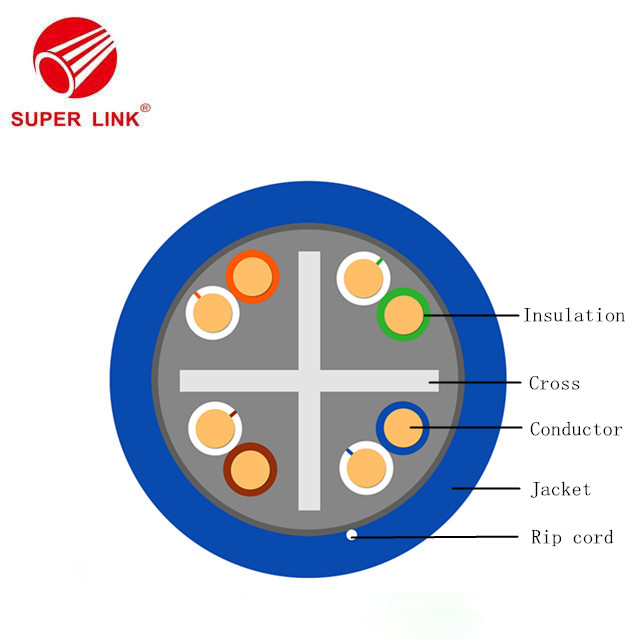

Construction dimension
Construction Material Nominal size
Inner conductor                Copper/CCA Φ0.57±0.005mm
Insulation                     Polyethylene PE Φ1.02±0.03mm
Twisting                     2 cores to the pair
Rip cord Nylon Material
Filler Separator
Outer sheath                 PVC/ PE/LSZH Φ 6.2±0.2mm (Thickness 0.55±0.05mm)


Engineering data
DC loop resistance  Max. 134Ω/km
Resistance unbalance         Max.              2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance) 1-250MHz 100±15Ω
Norminal velocity of propagation \ 67%
Capacitance Norminal 49 pF/km
Capacitance unbalance Max. 300 pF/km


producing  process

Superlink Network /LAN Cable CAT6 UTP

Superlink Network /LAN Cable CAT6 UTP



Certifications

 We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

Superlink Network /LAN Cable CAT6 UTP
Our Services
 1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
 5. If our customer have any problem, we will reply at 24 hours

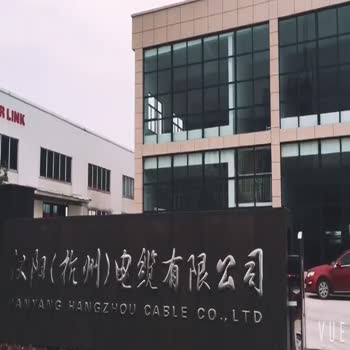

Company Information

        Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in  1990, located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the  IWMA  specializes in  the production ofcable,such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.

 Superlink Network /LAN Cable CAT6 UTP
Superlink Network /LAN Cable CAT6 UTP
Superlink Network /LAN Cable CAT6 UTP
