Home  >  electronic product >  CCTV Camera Coaxial Cable With Power Cable KX6 +2C

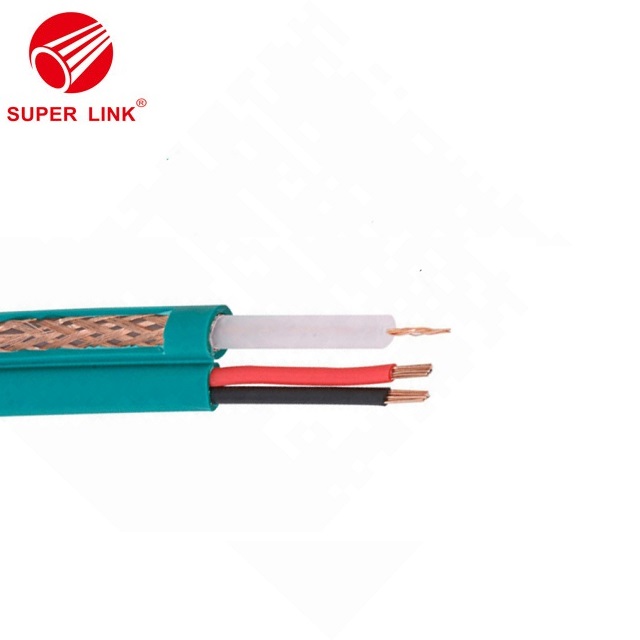

CCTV Camera Coaxial Cable With Power Cable KX6 +2C

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717


CCTV Camera Coaxial Cable With Power Cable KX6 +2C

Physical   Dimensions

Inner Conductor

COND.MATERIAL

Bare Copper

CONSTRUCTION

7/0.2±0.003mm

Insulation1

DIAMETER

Solided-PE

MATERIAL

3.7± 0.1mm

Shield

BRAIDING MATERIAL

CCAM

BRAID CONSTRUCTION

96/0.12±0.005mm

Jacket

DIAMETER

PVC

MATERIAL

6.1±0.20mm

COLOR

Green

                                                                                                ELECTRICAL CHARACTERISTICS

Impedance

75Ohm±3

Nominal Capacitance(pF/m)

67

Propagation velocity ration

66%

Insulation resitance

1000MΩ/km

ATTENUATION
at 20

(dB/100m)

10MHz

3.80

50MHz

8.30

100MHz

11.80

200MHz

17.00

500MHz

27.10

800MHz

35.70

1000MHz

41.50


producing  process

Superlink Factory Manufacture Coaxial Cable Kx Type Kx6
Superlink Factory Manufacture Coaxial Cable Kx Type Kx6




 Certifications

 We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.
 Superlink Factory Manufacture Coaxial Cable Kx Type Kx6


Our Services
 1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
5. If our customer have any problem, we will reply at 24 hours



Company Information

 Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA  specializes in the production ofcable, such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.

 Superlink Factory Manufacture Coaxial Cable Kx Type Kx6

Superlink Factory Manufacture Coaxial Cable Kx Type Kx6
Superlink Factory Manufacture Coaxial Cable Kx Type Kx6
All Cable we can produce:
#Power cable

All Cable we can produce:
#Power cable
YJV22 0.6/1KV2,VV22 0.6/1KV3,VJV 0.6/1KV4,VV 0.6/1KV5,VLV22 0.6/1KV6,YJV327,VLV 0.6/1KV8,VLV32 0.6/1KV
#Fire-resistant wires and cables
NH-VV 0.6/1KV2,NH-VV22 0.6/1KV3,NH-YJV4,NH-YJV225,BH-BV6,NH-BVR7,NH-KVV,NH-KVV228,NH-BVV,NH-BVV22
#High voltage cable
YJV222,YJLV223,YJV4,YJLV5,YJV32
#Coaxial Cables: OEM CATV CCTV cable
1) RG series Coaxial Cable:Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316,BT3002 etc.
2) JIS series Coaxial Cable:1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable:412, 500, 540
5) LMR SERIES:LMR200, LMR400, LMR600
#Network Cables: OEM from 1-100 pair
LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7
#Alarm Cables:
Alarm cable 4*0.22  Alarm cable 3*0.5   Alarm cable 8*0.22  Alarm cable 14*0.22
unshield and shield
#POWER CABLE SPEAKER CABLE:
2*0.75MM     2*1.5MM      2*2.5MM     3*2MM
