Home  >  electronic product >  High Standard Test Passed Coaxial Cable RG6

High Standard Test Passed Coaxial Cable RG6

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717

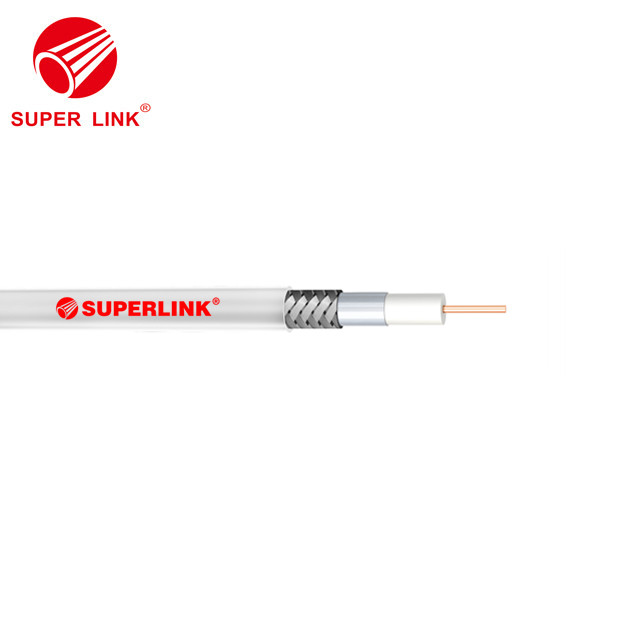

RG6 COAXIAL CABLE






Specifications

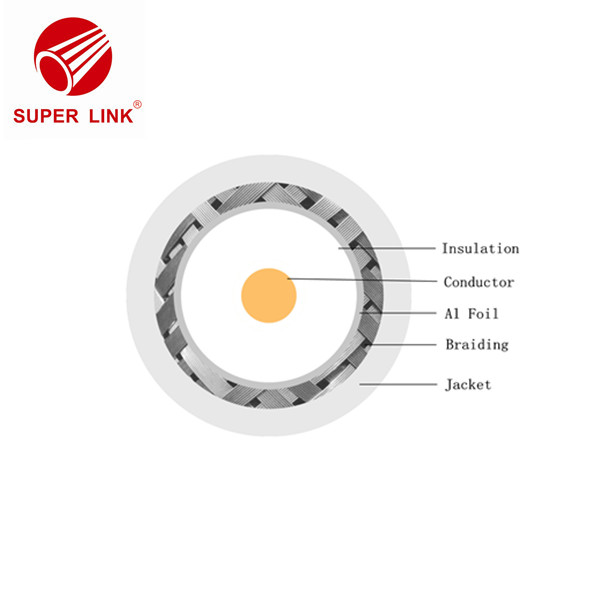

Construction

Center Conductor: 1.02+0.01mm BC/CCS18AWG
Dielectric: 4.58+0.05mm Foam PE
Shield: Bonded Al Foil
Braid Coverage: 60~90% BC/AL
Jacket: 6.90+0.05mm PVC
Connector F Male/BNC
Messenger 1.3mm Steel Wire

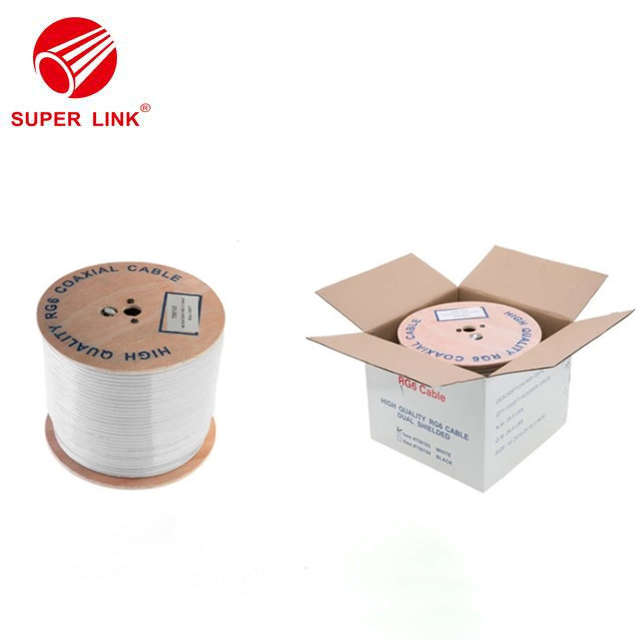

Length 305M/Wooden Reel


Characteristics
Sparker Test: 4000VAC
Impedance: 75+3 Ohm
Capacitance: 50+3pF/m
Velocity of Propagation: 85%
Return Loss: ≥22dB min (5-1000MHz)
  ≥20dB min (1000-2000MHz)


Attenuation
Attenuation [@68o F. (20o C.)]
Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m)
5 0.58 1.9
50 1.5 4.9
100 2 6.5
200 2.8 9.2
400 4.1 13.6
700 5.6 18.4
900 6.2 20.3
1000 6.5 21.4
1450 8 26.2
1800 8.5 27.9
2100 9.5 31.1
2250 10 34
3000 11.4 37.5

producing  process

Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera
Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera



 Certifications

 We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera

Our Services
 1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
We will do the QC test for
  6. If our customer have any problem, we will reply at 24 hours

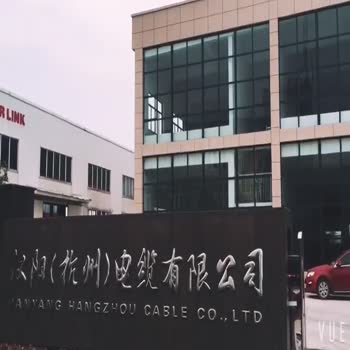

Company Information

 Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA  specializes in the production ofcable, such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.


 Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera

Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera
Superlink High Standard Test Passed Coaxial Cable RG6 for Setellite/Monitor/CCTV/CATV Camera
All Cable we can produce:
#Power cable

All Cable we can produce:
#Power cable
YJV22 0.6/1KV2,VV22 0.6/1KV3,VJV 0.6/1KV4,VV 0.6/1KV5,VLV22 0.6/1KV6,YJV327,VLV 0.6/1KV8,VLV32 0.6/1KV
#Fire-resistant wires and cables
NH-VV 0.6/1KV2,NH-VV22 0.6/1KV3,NH-YJV4,NH-YJV225,BH-BV6,NH-BVR7,NH-KVV,NH-KVV228,NH-BVV,NH-BVV22
#High voltage cable
YJV222,YJLV223,YJV4,YJLV5,YJV32
#Coaxial Cables: OEM CATV CCTV cable
1) RG series Coaxial Cable:Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316,BT3002 etc.
2) JIS series Coaxial Cable:1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable:412, 500, 540
5) LMR SERIES:LMR200, LMR400, LMR600
#Network Cables: OEM from 1-100 pair
LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7
#Alarm Cables:
Alarm cable 4*0.22  Alarm cable 3*0.5   Alarm cable 8*0.22  Alarm cable 14*0.22
unshield and shield
#POWER CABLE SPEAKER CABLE:
2*0.75MM     2*1.5MM      2*2.5MM     3*2MM
