Home  >  electronic product >  305m 24AWG LAN Cable Cat5e UTP

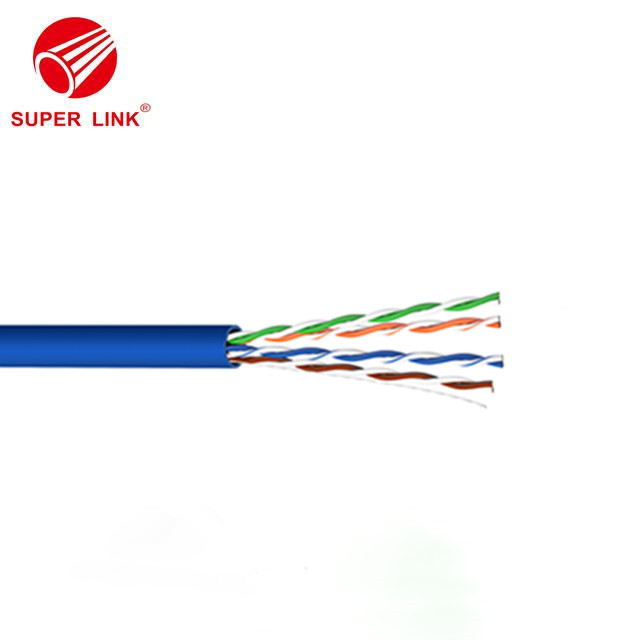

305m 24AWG LAN Cable Cat5e UTP

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717
 CAT5E UTP Lan Cable



Specifications

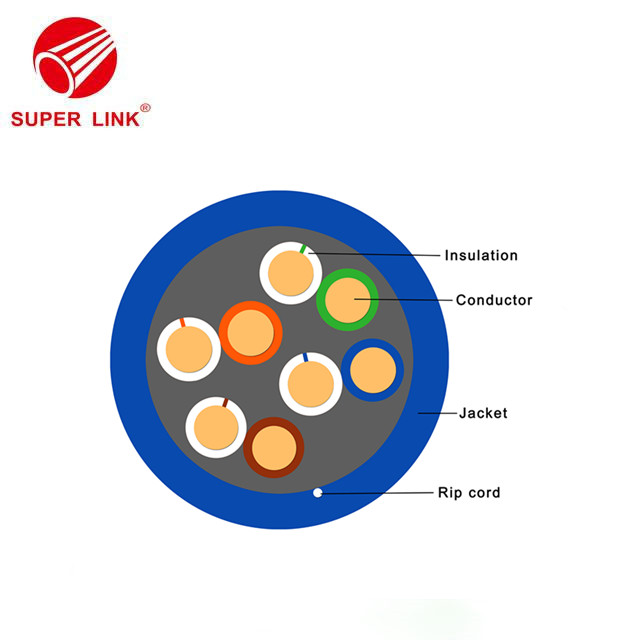

Construction dimension
Construction Material Nominal size
Inner conductor                Copper/CCA Φ0.51±0.005mm
Insulation                     Polyethylene PE Φ0.90±0.03mm
Twisting                     2 cores to the pair
Rip cord                     Nylon Material
Outer sheath                 PVC/ PE/LSZH Φ5.1±0.2mm (Thickness 0.55±0.05mm)

Engineering data
DC loop resistance  Max. 170Ω/km
Resistance unbalance         Max.            2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance 1-100MHz 100±15Ω
Norminal velocity of propagation \ 69%
Capacitance Norminal 50 pF/km
Capacitance unbalance Max. 300 pF/k




producing  process
305m 24AWG LAN Cable Cat5e UTP
305m 24AWG LAN Cable Cat5e UTP


Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

305m 24AWG LAN Cable Cat5e UTP


Our Services

  1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
  5. If our customer have any problem, we will reply at 24 hours



Company Information

Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA  specializes in the production of cable, such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.

305m 24AWG LAN Cable Cat5e UTP
305m 24AWG LAN Cable Cat5e UTP
305m 24AWG LAN Cable Cat5e UTP
