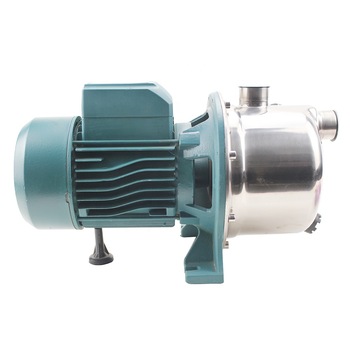

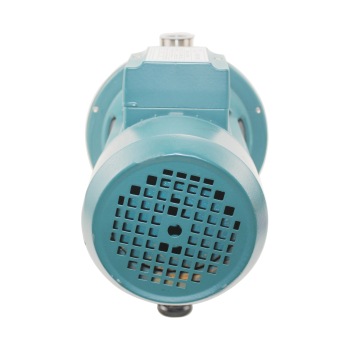

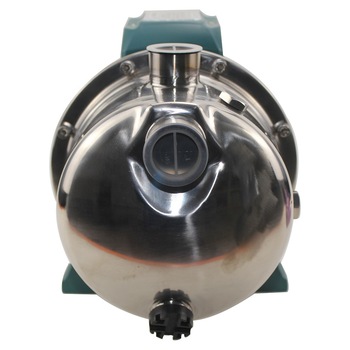

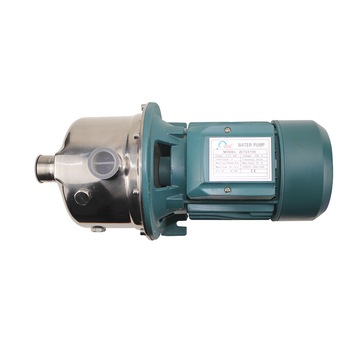

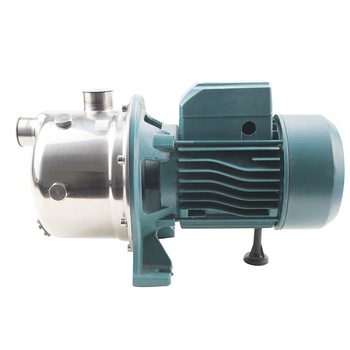

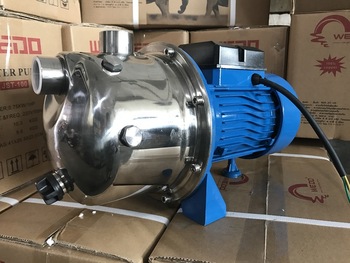

Self-Priming Water Pump
Application:
For water supply from wells or reservoirs.
For domestic use. for civil and industrial applications.
For garden use and irrigation
Operating conditions:
Maximum fluid temperature up to +60º C
Maximum ambient temperature up to +40º C
Maximum sand content: 0.25%
Total suction lift up to 8 m.
Continous duty
Motor and pump:
Rewindable motor
Three-phase: 380V-415V, Single-phase: 220V-240
Insulation: Class B
Protection: IP44
Structural characteristics:
Pump body: Cast iron/SS
Front cover: Cast iron
Diffuser: Noryl
Impeller: Brass/PPO
Mechanical seal: Ceramic and graphite
Shaft: 45# steel/stainless steel
Motor case: Aluminum
Warranty: 1 year
(according to our general sales conditions)
