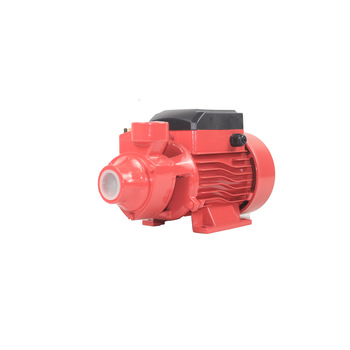

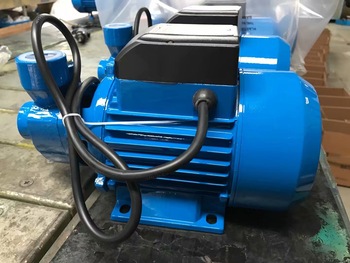

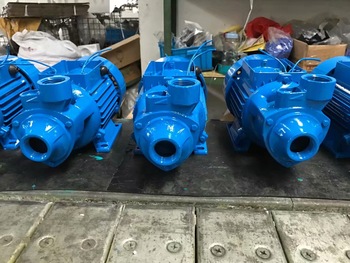

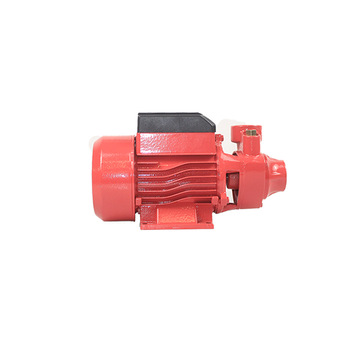

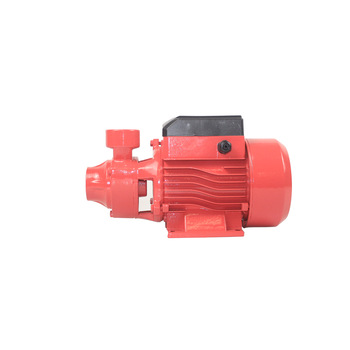

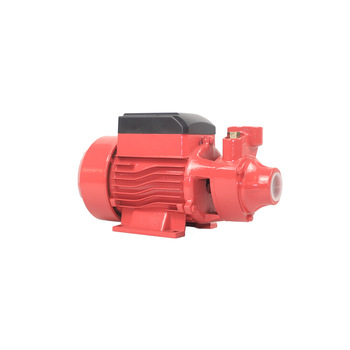

QB60 manual 370w0.5hp electric peripheral vortex general garden clean water pump
Application：
Clean water without abrasive particles / Non-aggressive liquid.
Domestic use.
In particular for delivering water in combination with small pressure sets and for irrigation.
Installed in enclosed places, or at least protected against inclement weather.
Operating Conditions
Suction lift up to 8 m.
Liquid temperature up to +40ºC.
Ambient temperature up to +40ºC.
Max. Working pressure: 2.1 bar.
Motor
2 pole induction motor.
Single-phase, 50Hz / 60Hz.
Insulation: Class B.
Protection IP 44.
With capacitor and thermal overload protection.
Material

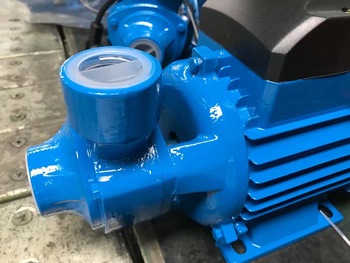

Pump body: Cast iron.
Motor support: Aluminum / Cast iron.
Impeller: Brass.
Motor shaft: Stainless steel or CS45#.
Mechanical seal: Ceramic-Graphite.
Copper Winding.
