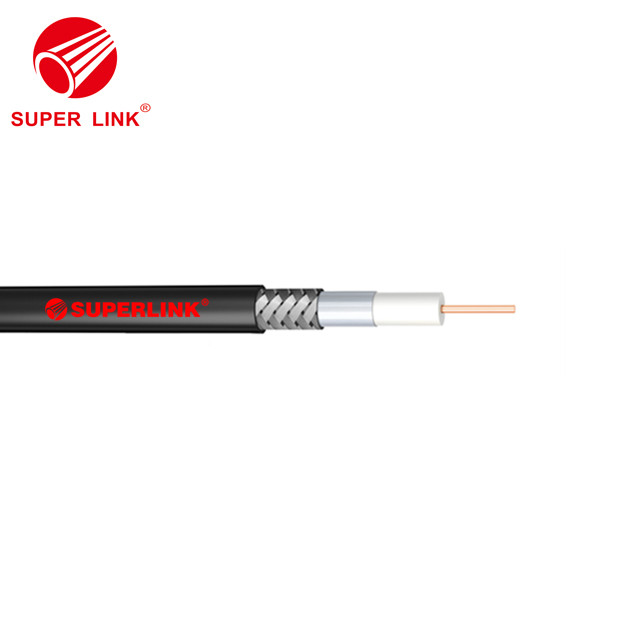

CCTV Rg59 Siamese Cable
1) Inner Conductor: 0.81mm CCS
2) Al-foil: Al-Foil
3) Braiding: 96*0.12mm CCA
4) Braiding Coverage: 85%
5) Jacket Color: White, Black
6) Power: 2x18awg (0.75MM2) / CCA
|
Electrical Characteristics [@68°F. ( 20°C)] |
||||||
|
|
Frequency(Mhz) |
Nominal values (dB/100M) |
Frequency(Mhz) |
Nominal values (dB/100M) |
Frequency(Mhz) |
Nominal values (dB/100M) |
|
Attenuation |
5MHZ |
3.54 |
600MHZ |
20.34 |
1450MHZ |
32.41 |
|
55MHZ |
6.73 |
750MHZ |
22.87 |
1800MHZ |
38.72 |
|
|
187MHZ |
11.81 |
865MHZ |
24.67 |
2200MHZ |
42.78 |
|
|
300MHZ |
14.60 |
1000MHZ |
26.64 |
|||
|
450MHZ |
17.72 |
1200MHZ |
29.40 |
|||
|
Min Return Loss(dB) |
≥20 |
|||||
|
Impedance(Ω ) |
75± 3 |
|||||
|
Velocity Rate(%) |
85 |
|||||
producing process
Certifications
We have got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.
Our Services
1. Free sample
2. We can suggest you our suitable products when u have no idea about the cable.
3. If available for you, welcome to visit our factory.
4. We can according to your samples to produce exactly the same product
We will do the QC test for
6. If our customer have any problem, we will reply at 24 hours

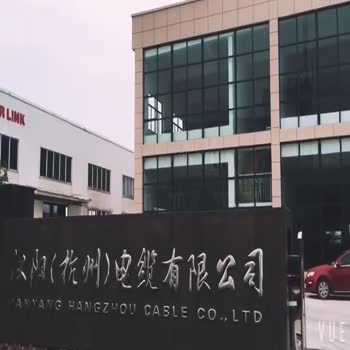

Company Information
Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990, located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA specializes in the production of cable,such as coaxial cable, network cable, speaker cable, etc. which are highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and services to clients all over the world.
All Cable we can produce:
#Power cable
YJV22 0.6/1KV2,VV22 0.6/1KV3,VJV 0.6/1KV4,VV 0.6/1KV5,VLV22 0.6/1KV6,YJV327,VLV 0.6/1KV8,VLV32 0.6/1KV
#Fire-resistant wires and cables
NH-VV 0.6/1KV2,NH-VV22 0.6/1KV3,NH-YJV4,NH-YJV225,BH-BV6,NH-BVR7,NH-KVV,NH-KVV228,NH-BVV,NH-BVV22
#High voltage cable
YJV222,YJLV223,YJV4,YJLV5,YJV32
#Coaxial Cables: OEM CATV CCTV cable
1) RG series Coaxial Cable:Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316,BT3002 etc.
2) JIS series Coaxial Cable:1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8
4) TRUNK Cable:412, 500, 540
5) LMR SERIES:LMR200, LMR400, LMR600
#Network Cables: OEM from 1-100 pair
LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7
#Alarm Cables:
Alarm cable 4*0.22 Alarm cable 3*0.5 Alarm cable 8*0.22 Alarm cable 14*0.22
unshield and shield
#POWER CABLE SPEAKER CABLE:
2*0.75MM 2*1.5MM 2*2.5MM 3*2MM
