High Speed Top Standard Cat 7 Cable

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717
High Speed Top Standard Cat 7 Cable


Description

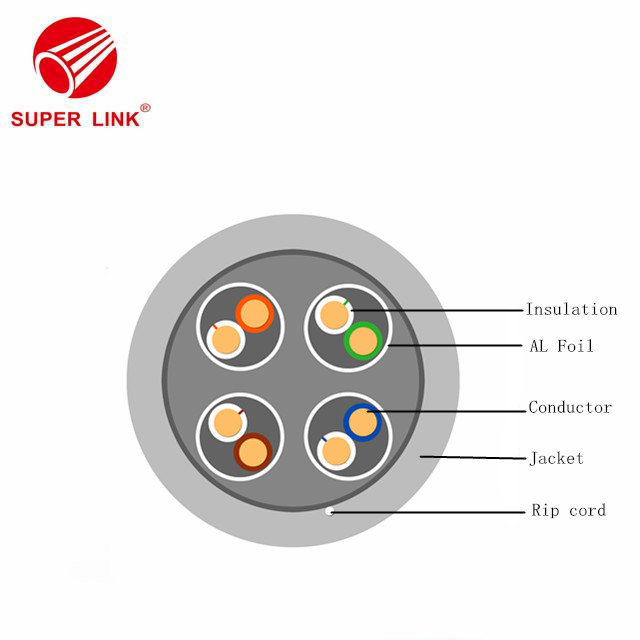

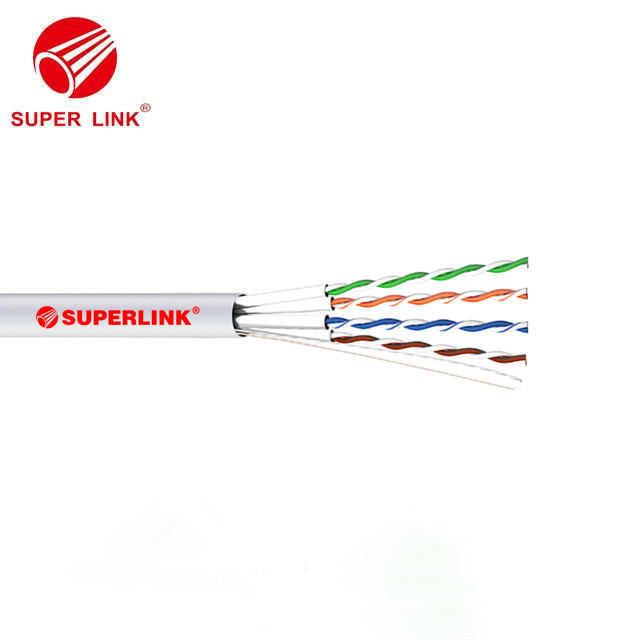

Construction dimension
Construction Material Nominal size
Inner conductor 23AWG CU/CCA Φ 0.57±0.005mm
Insulation Polyethylene PE Φ 0.9mm±0.03mm
Twisting 2 cores to the pair
Rip cord Nylon Material
Shielded PET
Drain wire BC/TC/CCA Φ 0.4mm
Braiding BC/TC/CCA 16/6/0.12mm
Outer sheath PVC/ PE/LSZH Φ 7.5±0.2mm (Thickness 0.55±0.05mm



Engineering data
DC loop resistance  Max. 170Ω/km
Resistance unbalance         Max.            2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance 1-100MHz 100±15Ω
Norminal velocity of propagation \ 69%
Capacitance Norminal 50 pF/km
Capacitance unbalance Max. 300 pF/km

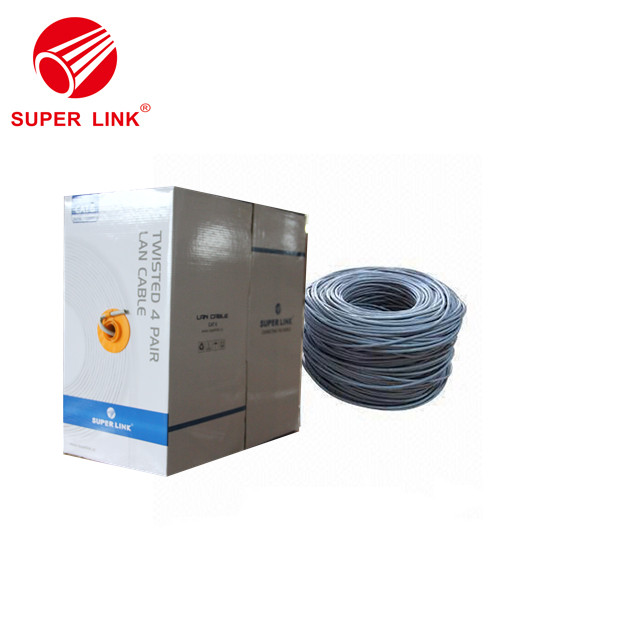

Packaging Details:
1)100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Production capacity: 80000Km/month
 High Speed Top Standard Cat 7 Cable


 High Speed Top Standard Cat 7 Cable



Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

 High Speed Top Standard Cat 7 Cable

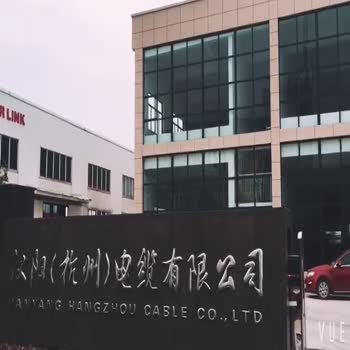

Company Information

    Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA specializes in  the producting of cable, such as coaxial cable, network cable, speaker cable, etc. which are highly appreciated by  oversea  users. We focus on providing high quality OEM/ODM products and services to clients all over the world.
High Speed Top Standard Cat 7 Cable

High Speed Top Standard Cat 7 Cable
High Speed Top Standard Cat 7 Cable
