Home  >  electronic product >  Test Passed Ce UL RoHS Certificated LAN Cable CAT6

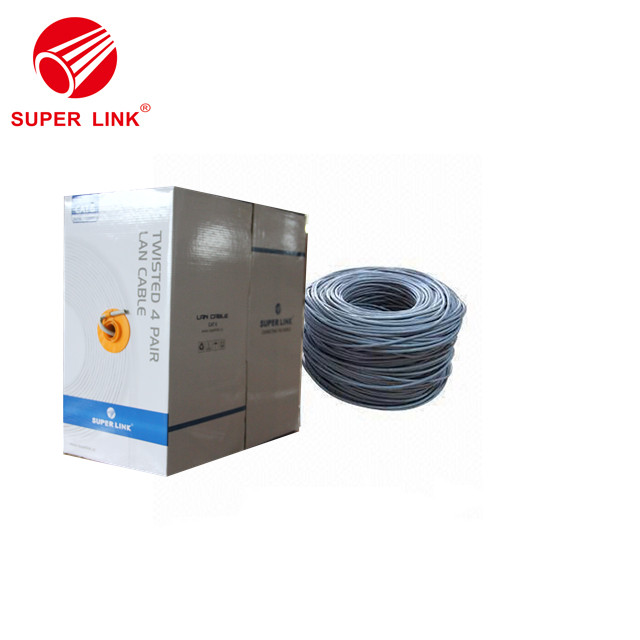

Test Passed Ce UL RoHS Certificated LAN Cable CAT6

Price
￥ 100.00
Sale Price
￥ 99.00

electronic product

specification
   Add to Wishlist

Merchant information

SUPERLINK CABLE
Shirley Ji
18657514717

Hot products

Description Product Information
 CAT6 SFTP LAN CABLE




Specifications

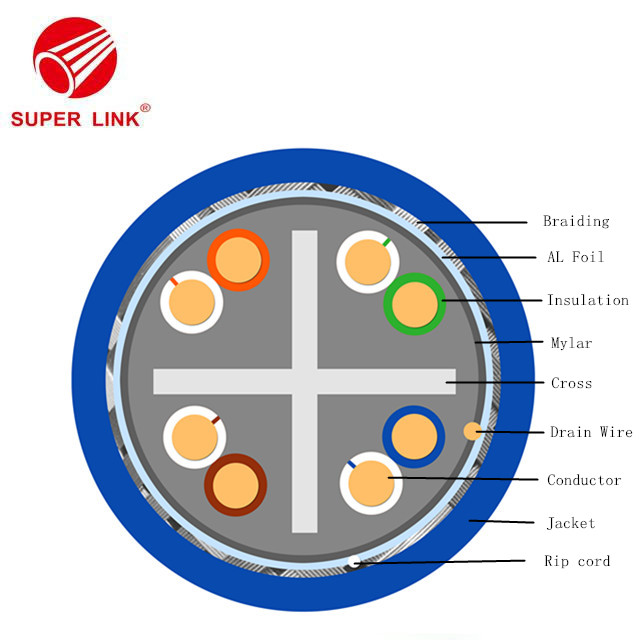

Construction dimension
Construction Material Nominal size
Inner conductor Copper/CCA Φ 0.51±0.005mm
Insulation Polyethylene PE Φ 0.9mm±0.03mm
Twisting 2 cores to the pair
Rip cord Nylon Material
Shielded PET
Drain wire BC/TC/CCA Φ 0.4mm
Braiding BC/TC/CCA 16/6/0.12mm
Outer sheath PVC/ PE/LSZH Φ 6.0±0.2mm (Thickness 0.55±0.05mm



Engineering data
DC loop resistance  Max. 170Ω/km
Resistance unbalance         Max.            2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance 1-100MHz 100±15Ω
Norminal velocity of propagation \ 69%
Capacitance Norminal 50 pF/km
Capacitance unbalance Max. 300 pF/km




producing  process

Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP
Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP



Certifications

 We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.
 Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP
Our Services
 1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
  5. If our customer have any problem, we will reply at 24 hours


Company Information

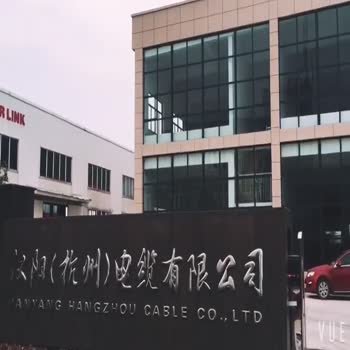

        Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in  1990, located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the  IWMA  specializes in  the production ofcable,such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.
 Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP
Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP
Test Passed Ce UL RoHS Certificated LAN Cable CAT6 SFTP
