4 Pairs High Performance Network Cable CAT6 FTP

Price
￥ 100.00
Sale Price
￥ 99.00

electronic product

specification
   Add to Wishlist

Merchant information

SUPERLINK CABLE
Shirley Ji
18657514717

Hot products

Description Product Information

4 Pairs High Performance Network Cable CAT6 FTP

Specifications

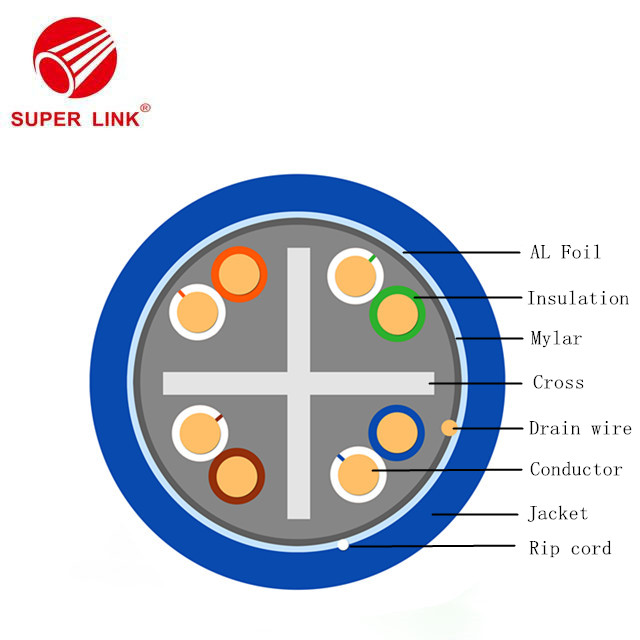

Construction dimension

Construction

Material

Nominal size

Inner conductor

Copper/CCA

Φ0.57±0.005mm

Insulation

Polyethylene PE

Φ1.02±0.03mm

Twisting

2 cores to the pair



Rip cord

Nylon Material



Filler

Separator



Outer sheath

PVC/ PE/LSZH

Φ 6.2±0.2mm (Thickness 0.55±0.05mm)


Engineering data
DC loop resistance  Max. 170Ω/km
Resistance unbalance         Max.            2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance 1-100MHz 100±15Ω
Norminal velocity of propagation \ 69%
Capacitance Norminal 50 pF/km
Capacitance unbalance Max. 300 pF/k




producing  process

4 Pairs High Performance Network Cable CAT6 FTP
4 Pairs High Performance Network Cable CAT6 FTP


Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

4 Pairs High Performance Network Cable CAT6 FTP


Our Services

  1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
   We will do the QC test for
  6. If our customer have any problem, we will reply at 24 hours

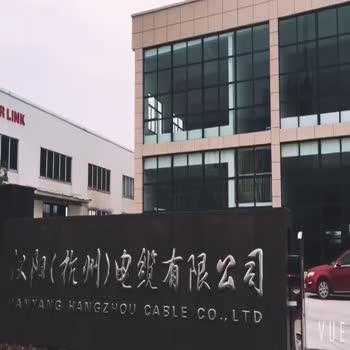

Company Information

Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA  specializes in the production of cable, such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.
