Home  >  electronic product >  Factory Manufacture Network Cable Cat5e FTP

Factory Manufacture Network Cable Cat5e FTP

Price
¥ 100.00
Sale Price
¥ 99.00

electronic product

specification

Merchant information

Shirley Ji
18657514717
Factory Manufacture Network Cable  CAT5E FTP




Specifications


Construction dimension
Construction Material Nominal size
Inner conductor                Copper/CCA Φ0.51±0.005mm
Insulation                     Polyethylene PE Φ0.90±0.03mm
Twisting                     2 cores to the pair
Rip cord                     Nylon Material
Outer sheath                 PVC/ PE/LSZH Φ5.1±0.2mm (Thickness 0.55±0.05mm)

Engineering data
DC loop resistance  Max. 170Ω/km
Resistance unbalance         Max.            2%
Propagation delay \ ≤570 ns/100m
Delay skew Max. ≤45 ns/100m
Impedance 1-100MHz 100±15Ω
Norminal velocity of propagation \ 69%
Capacitance Norminal 50 pF/km
Capacitance unbalance Max. 300 pF/k




producing  process

Superlink Factory Manufacture Network Cable Cat5e FTP
Superlink Factory Manufacture Network Cable Cat5e FTP



Certifications

We got a serious of certification of cable manufacture and material , including UL, CPR, ETL, CE, ROHS, REACH, which guarantee our high quality and environmental products.

Superlink Factory Manufacture Network Cable Cat5e FTP


Our Services

  1. Free sample
  2. We can suggest you our suitable products when u have no idea about the cable.
  3. If available for you, welcome to visit our factory.
  4. We can according to your samples to produce exactly the same product
  5. If our customer have any problem, we will reply at 24 hours




Company Information

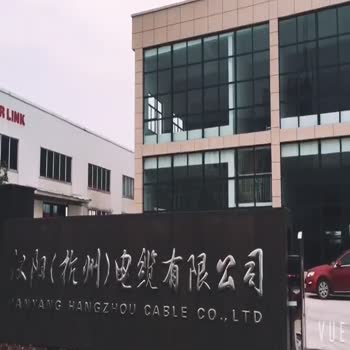

Hanyang(Hangzhou)Cable Co., Ltd. belongs to the Superlink Holding Limited, which established in 1990,  located in Lin'an Hangzhou City. ''Super Link'' is our brand name. we are the member of the IWMA  specializes in the production of cable, such as coaxial cable, network cable, speaker cable, etc. which are  highly appreciated by oversea users. We focus on providing high quality OEM/ODM products and  services to clients all over the world.
Superlink Factory Manufacture Network Cable Cat5e FTP
Superlink Factory Manufacture Network Cable Cat5e FTP
Superlink Factory Manufacture Network Cable Cat5e FTP
